Pallet Racking

Stakapal’s SR2000 Series Adjustable Pallet Racking offers a variety of storage solutions for practically any type of palletised products you may wish to store. Our system is totally flexible and can be designed to meet precise or bespoke criteria without sacrificing cost effectiveness.

Previous
Next

What Pallet Racking does Stakapal offer?

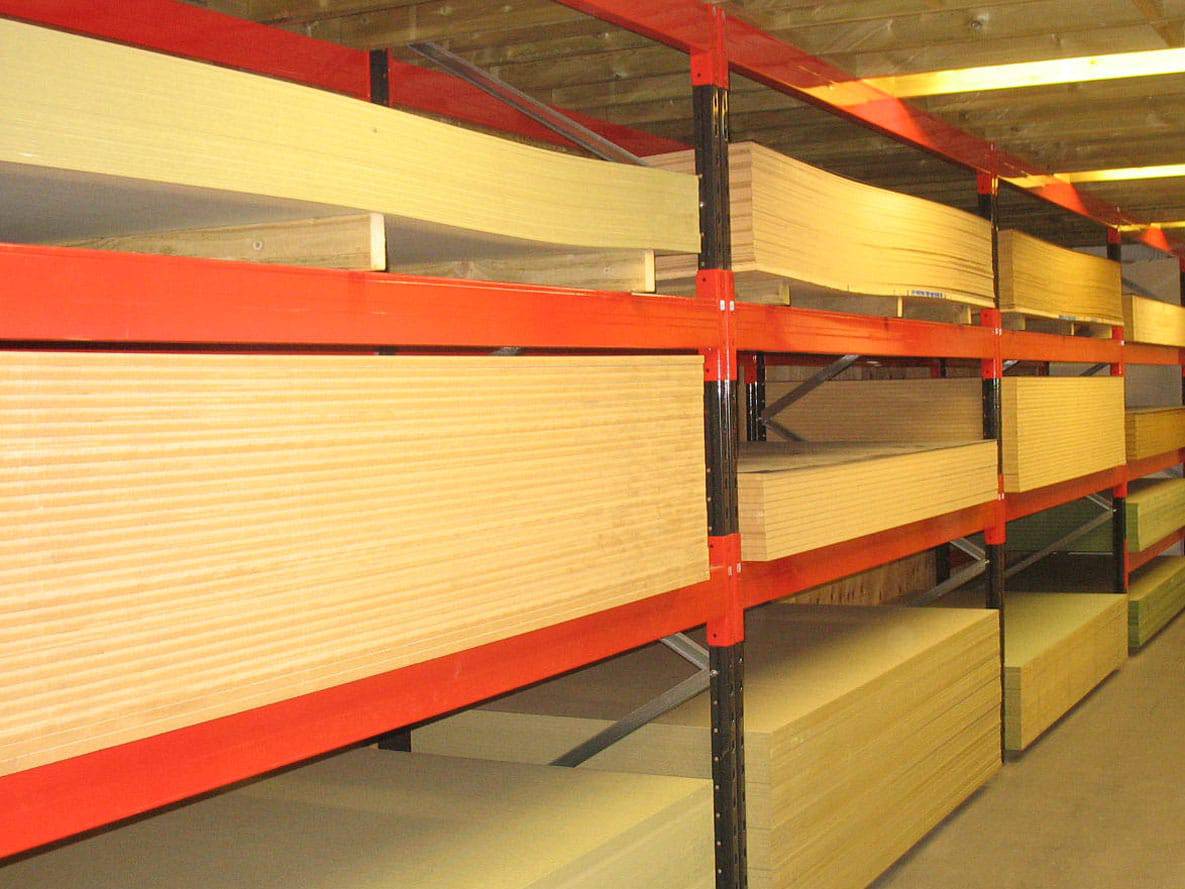

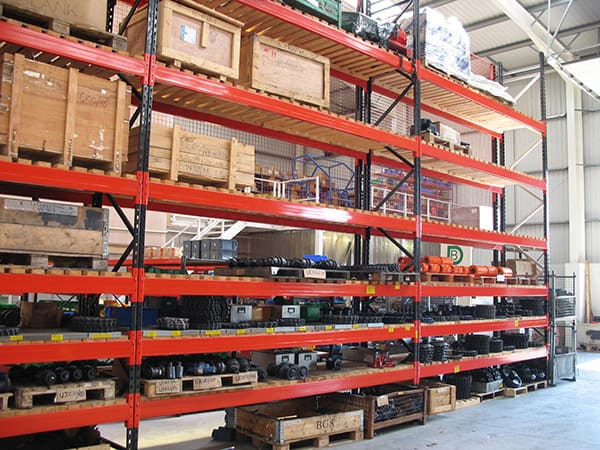

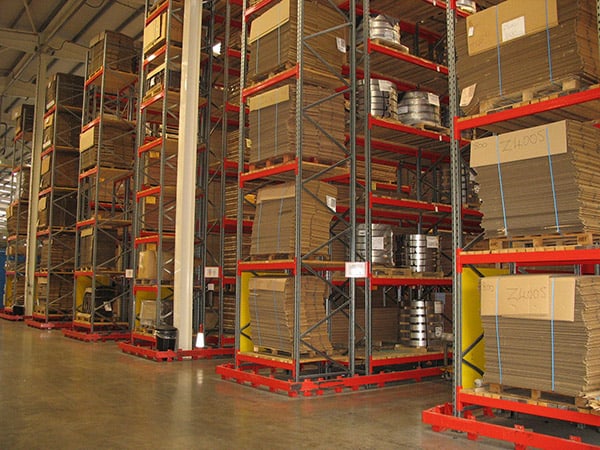

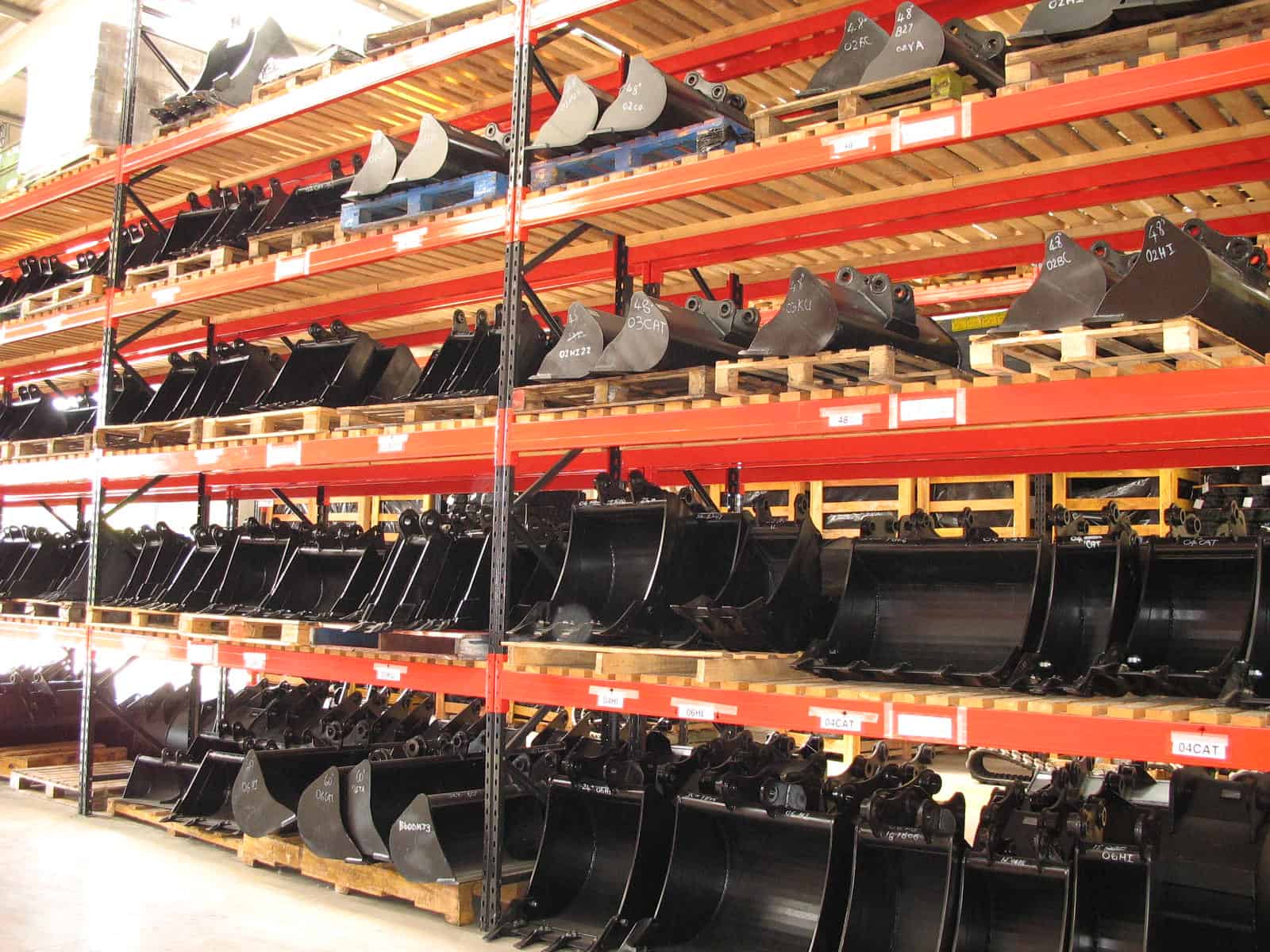

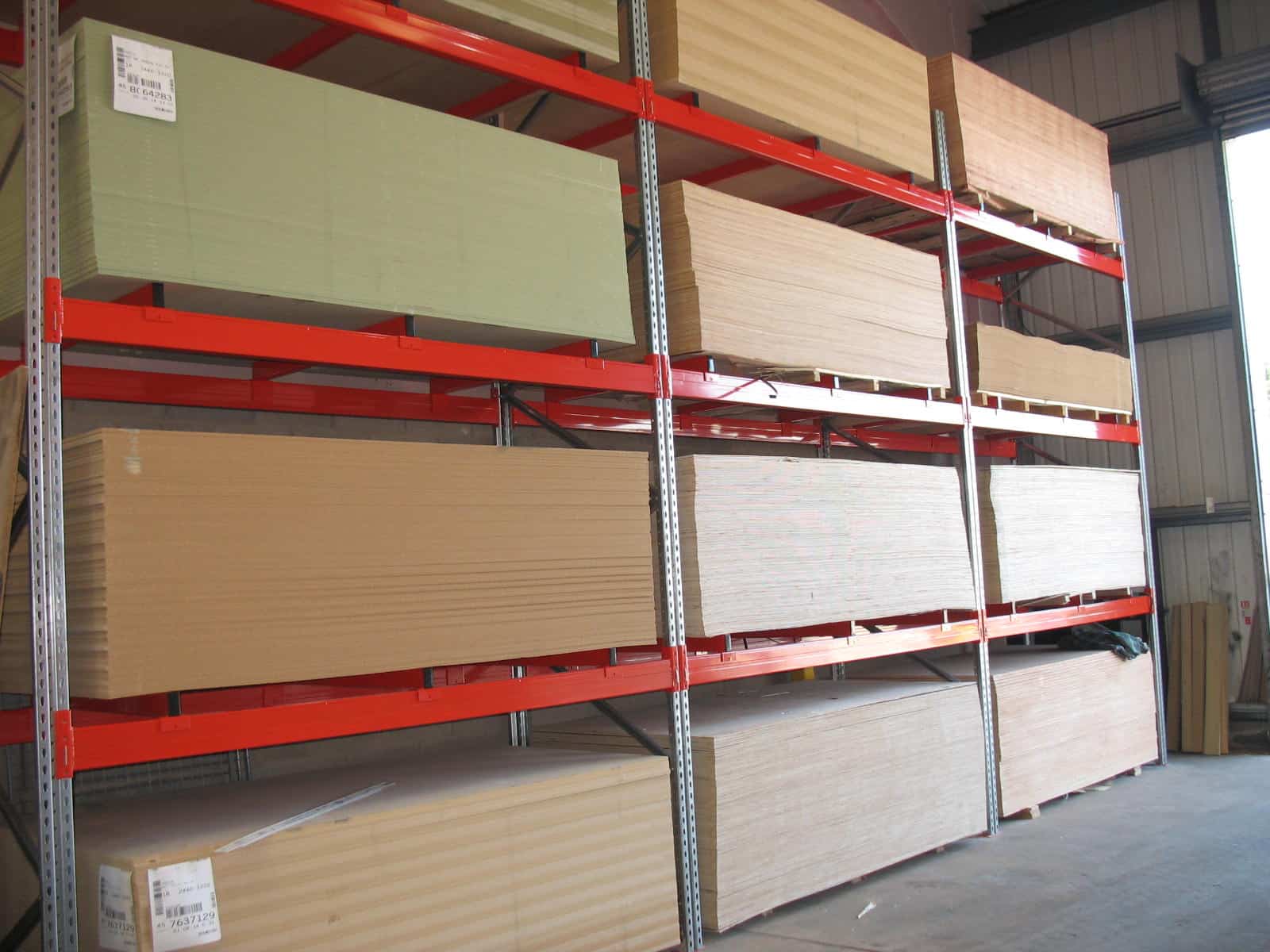

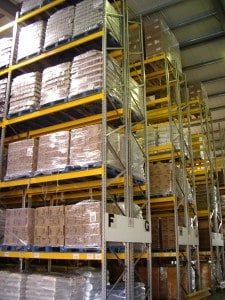

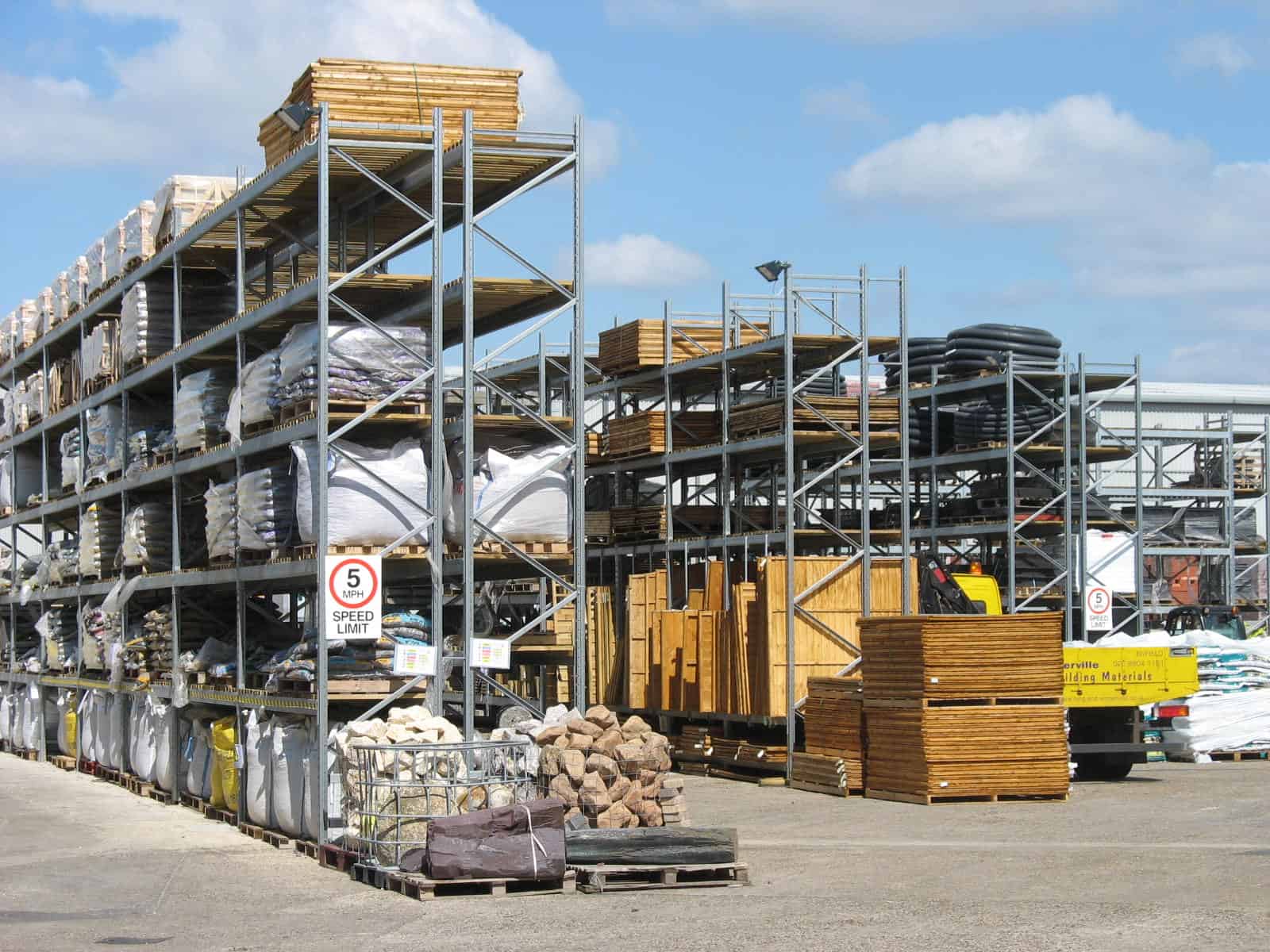

Stakapal will have the storage answer whether it be racks for building supplies, carpet storage, sheet materials, food and ingredients or just simply palletised goods. The full range is manufactured in the UK at our purpose-built factory in Cannock, Staffordshire.

The SR2000 Series Pallet Racking system is designed for strength and durability as well as ease of assembly. Our comprehensive range of rack frames and beams ensure that there is a solution from Stakapal for any storage challenge customers may have.

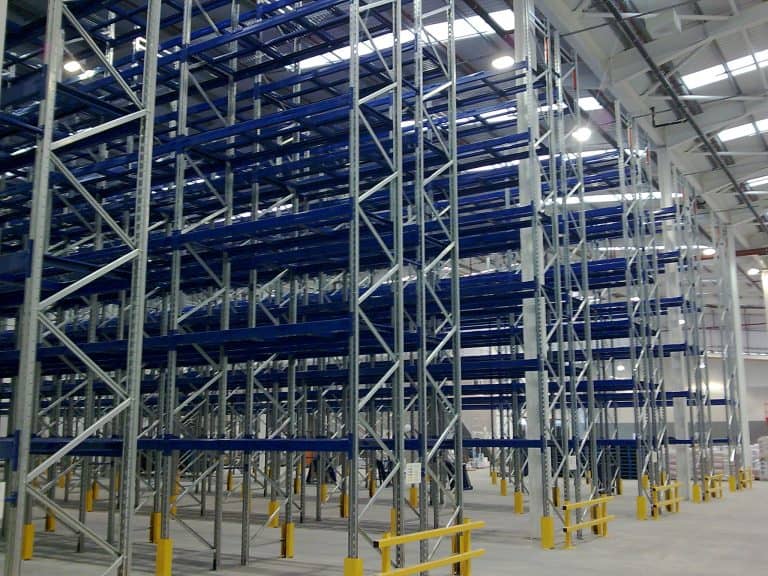

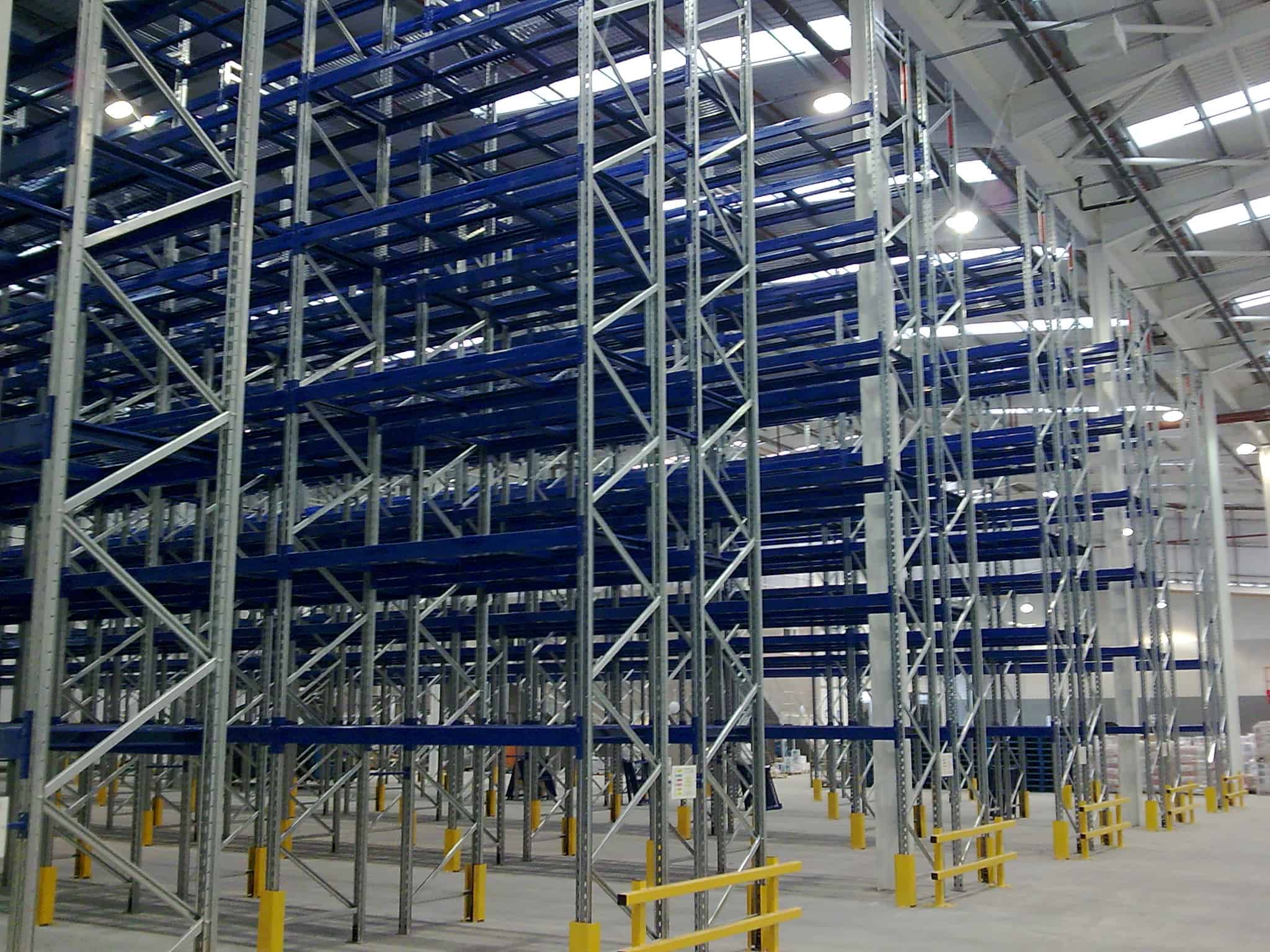

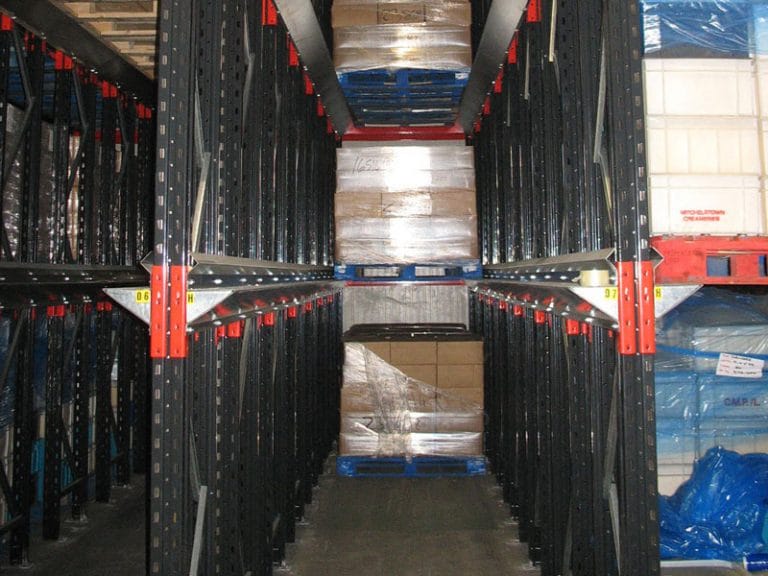

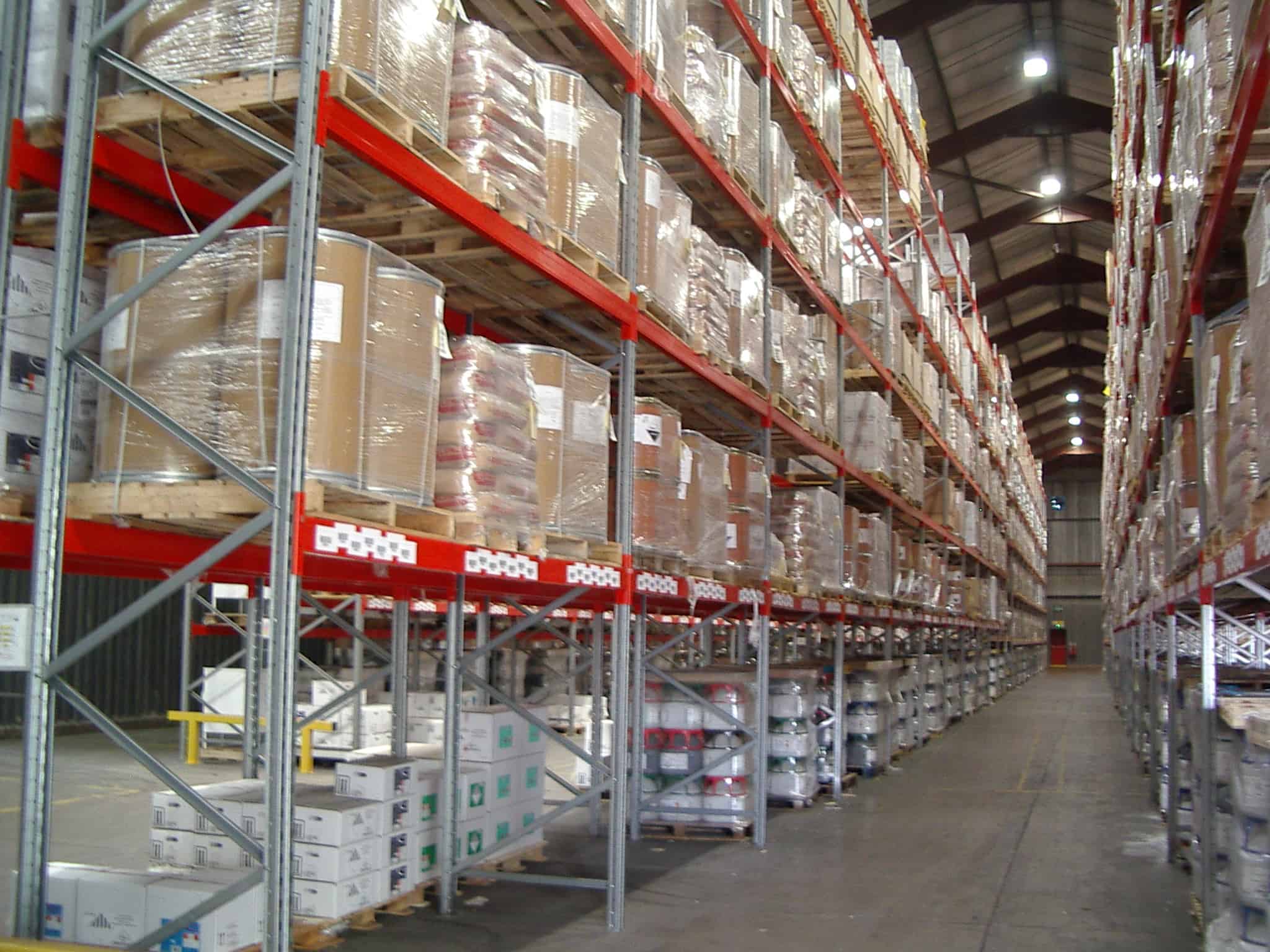

Our range includes Conventional Aisle Adjustable Pallet Racking, Narrow Aisle Pallet Racking and Drive-In Pallet Racking.

Stakapal’s racking is manufactured in accordance with the SEMA (Storage Equipment Manufacturers Association) Code of Practice for the Design of Adjustable Pallet Racking and can also be offered as a design conforming to
BS EN15512:2009 standards.

Previous
Next

What are the features & benefits of our Pallet Racking range?

  • 3 post types give an extensive range of racking frame load capabilities
  • Pallet Rack frames are manufactured with single continuous uprights for maximum rigidity
  • Reversible uprights enable damaged rack uprights to be reused
  • Unrivalled choice of beams connected via 3 different types of connector, ensuring a solution whatever the requirement
  • Wrap around connectors provide additional lateral restraint from the connector improving lateral stability
  • Closed box beam construction minimises torsion and damage
  • All beam locking pins are tamper proof and prevent accidental dislodgement
  • A double fixing footplate is standard to allow floor fixing both sides of the upright minimising rack post damage from twisting

Frequently Asked Questions

Pallet Racking is an industrial storage system primarily of frames and beams manufactured from cold rolled steel sections for storing palletised products. Whatever products you wish to store Stakapal will advise you how to maximise the available storage area and exactly which pallet racking solution will specifically meet your requirements.

Pallet Racking consists primarily of frames and beams. A frame comprises two upright posts connected together by a series of diagonal and horizontal braces. Pallet Racking bays have many differing beam levels dependent upon the height of the pallet. Bays are created by connecting a number of  frames together with two or more pairs of beams per bay creating three storage levels.



Single bays are not generally recommended due to the reduced stability and should be avoided whenever possible. The capacity of a bay depends on the position of the beams within that bay. The greater the vertical distance apart, the lower the capacity of the bay. Bays that contain only one pair of beams are also inherently less stable and should be avoided wherever possible. Our Technical Engineers will assess your specific storage requirements and our comprehensive range of rack frames and beams ensure there is a solution from Stakapal for any storage challenge customers may have.



As Stakapal offer 3 differing post types it enables us to offer an extensive range of racking frame load capabilities. The most common beam length used in the UK is 2700mm. This accommodates two 1200mm wide UK pallets stored side by side with a 75mm clearance either side of the pallet.



The Pallets are 1000mm deep and stored on 900mm deep frame allowing 50mm overhang front and back. It is also possible to store the pallets 1200mm deep to allow the rack to be used to store a combination of UK and Euro pallets.

Yes, we do - Stakapal’s in-house installation teams are all SEIRS (Storage Equipment Installers Registration Scheme) registered from Advanced Skills through to Site Management capability. Our Dedicated Technical Engineers will visit your site providing a free site racking survey service guiding you through the complete process from concept to completion.
