Conventional Cantilever Racking

Cantilever Racking Product Range

Conventional Cantilever Racking is the most commonly used system for long lengths of product.

What is Conventional Cantilever Racking?

This is the most commonly utilised system that stakapal offer and is designed for the storage and selection of a multitude of long products. The full range is manufactured in the UK at our purpose-built factory in Cannock, Staffordshire.

Racking can be supplied as single or double sided runs supported by aisle feeding racks either side or stand alone runs to suit individual customer requirements.

Stakapal’s Cantilever Racks are designed to the SEMA Code of Practice for the design of Static Cantilever Racking and/or FEM 10-2-09 and/or BS5950 Part 5 and/or BS EN 1993 -1-3 (Eurocode 3).

What are the features & benefits of Conventional Cantilever Racking?

  • 100% accessibility to individual packs
  • Highly versatile adjustable arms means that the system can be designed to suit any pack size to maximise space utilisation
  • Adaptable for use with conventional forklift trucks, side loading type trucks or multi-directional reach trucks
  • Easily installed or re-positioned

Options:

Frequently Asked Questions

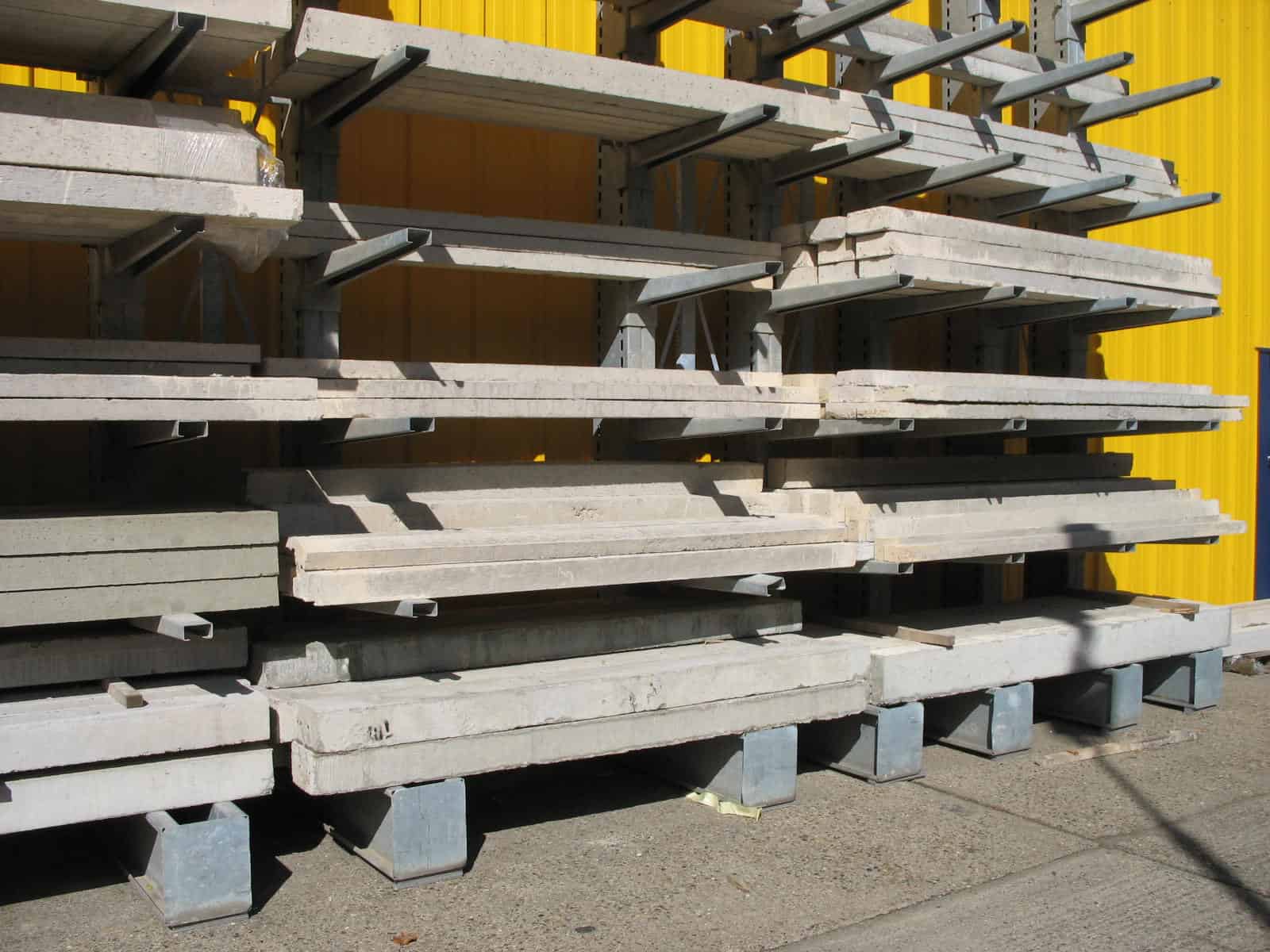

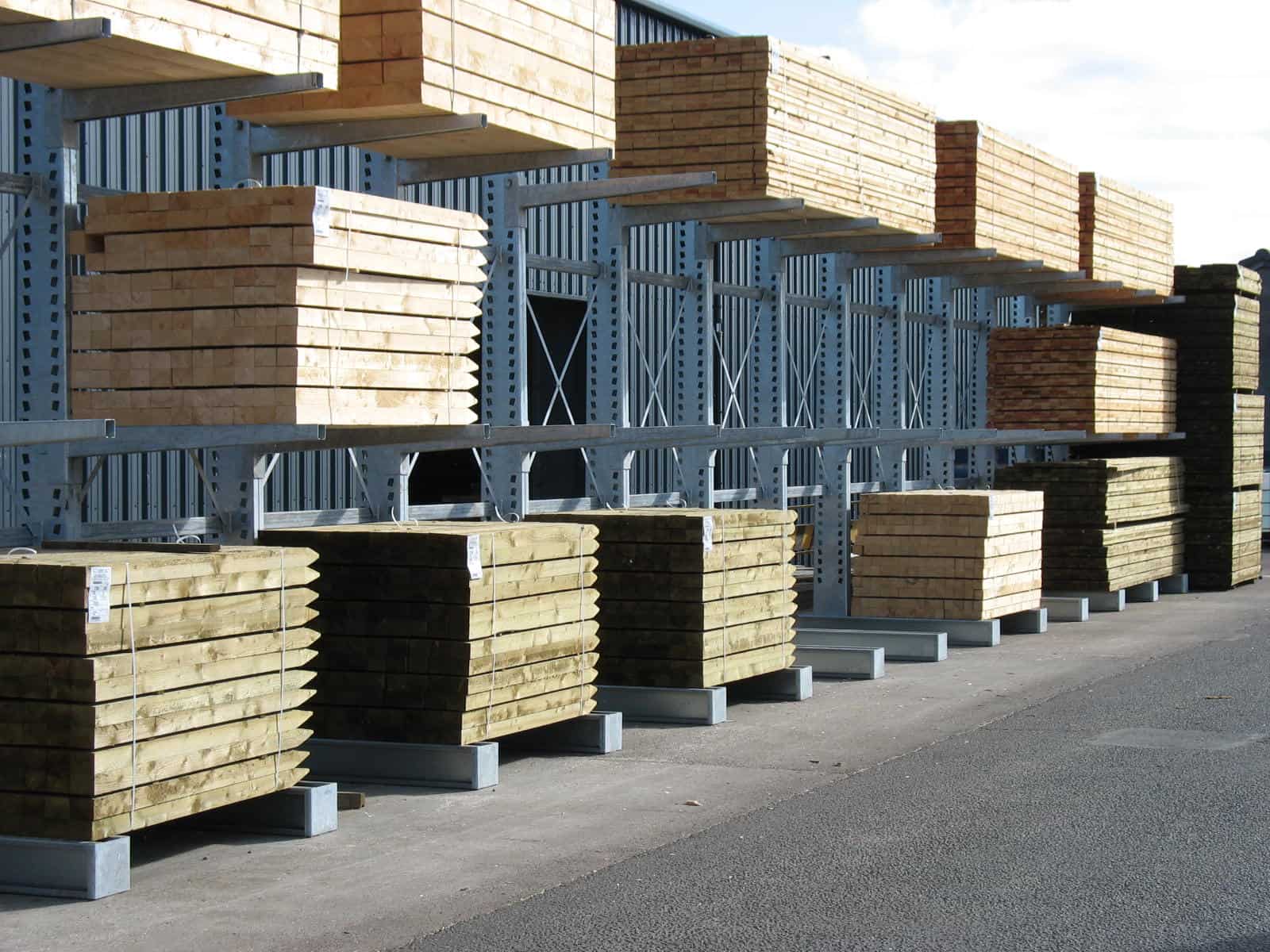

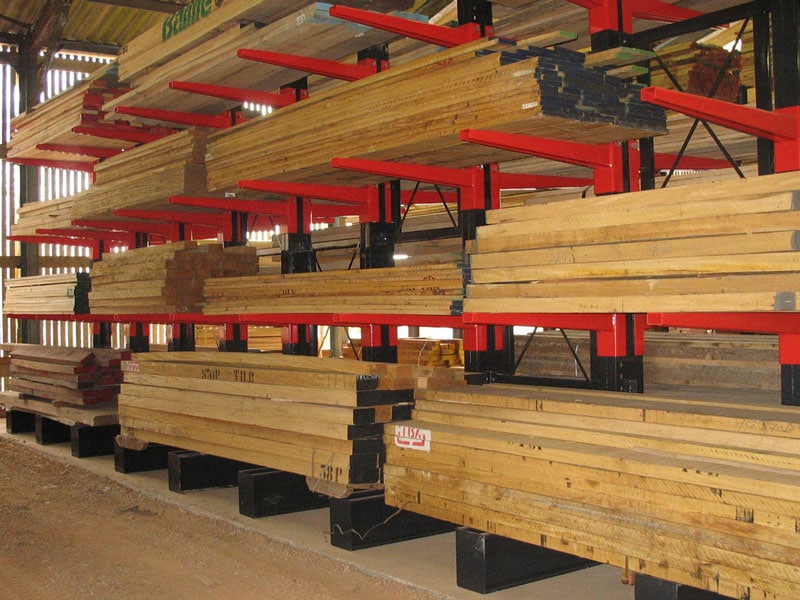

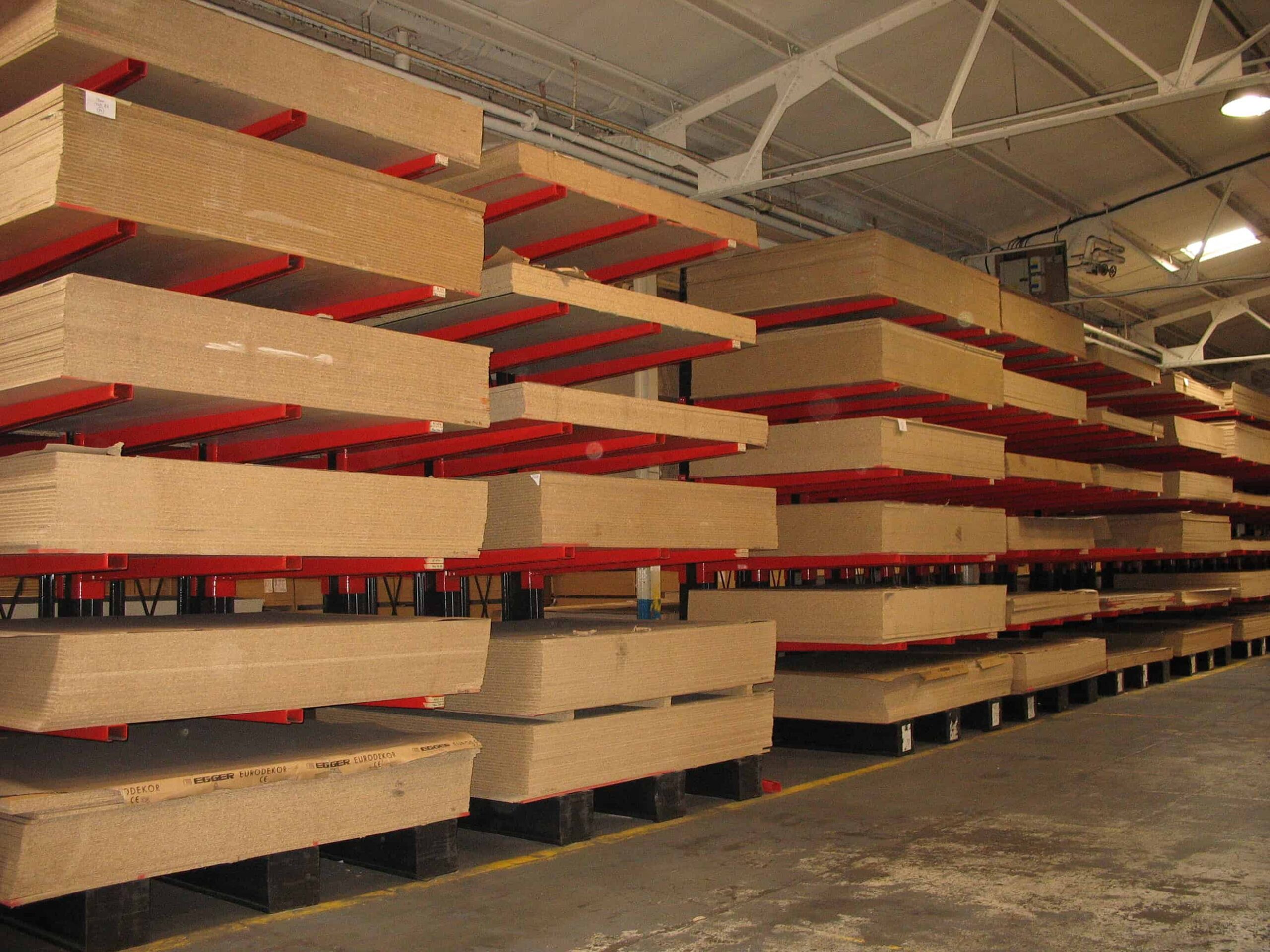

As the most commonly used system Conventional Cantilever Racking is manufactured in heavy duty steel and used in warehouses and yards for storing long lengths of product in particular timber, panel products, laminates, metals and PVCu extrusions. Whatever long products you wish to store Stakapal will advise you how to maximise the available storage area and exactly which racking solution will specifically meet your requirements.

Conventional Cantilever Racking consists of vertical upright columns with arms attached at variable heights. Brace frames are located at the back of the racks to increase the load capacity along with integral bases that support the overall structure. Arms can be adapted to accommodate specific load bearing requirements and designed to suit any pack size to fully maximise the available area.

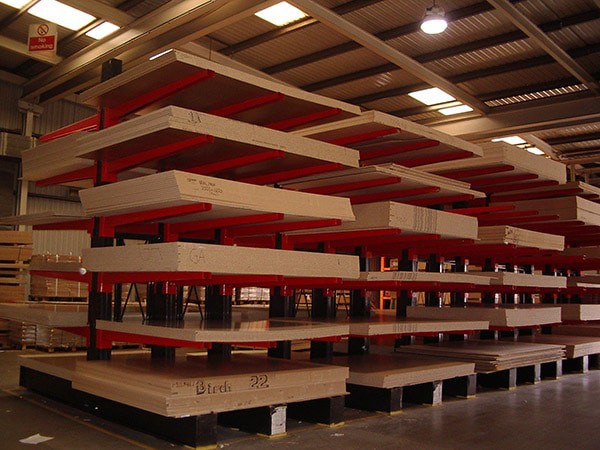

Systems are available in both double-sided and single-sided configurations. Single-sided racks can fit flush against the wall. A Double-sided configuration allows the racking to be used from either side, and can be used throughout the warehouse, creating storage space on either side of the central column.

Cantilever Racking can also be referred to as Christmas Tree Racking or Tree Racking due to the shape of the structure with the vertical bar racks being similar to a tree. Other phrases used include Horizontal Bar Racking and Bar Racking.

Our tapered arms are available in a wide range of lengths from 600mm up to 2100mm, depending upon bespoke requirements. Our most common arm lengths are 1220mm and 2100mm which are widely used in the Timber and Panel Products industries. Arm loadings are available from between 500kgs to 2000kgs.

Yes, we do – Stakapal’s in-house installation teams are all SEIRS (Storage Equipment Installers Registration Scheme) registered from Advanced Skills through to Site Management capability. Our Dedicated Technical Engineers will visit your site providing a free site racking survey service guiding you through the complete process from concept to completion.
